KC HiLites Gravity® Titan®Overhead Light Bar - JL 4xe
At the center of the system is the Gravity® Titan® LED Light Bar, KC’s most advanced lighting platform. Powered by the Titan Core and 3-Source LED optics, Titan produces a larger illumination zone, increased peak intensity, and greater beam distance than previous Gravity platforms. Dual Power Modes allow you to switch between full High Power Mode for nighttime driving and an integrated Amber Dust Light that acts as a highly visible marker in dusty, snowy, or low-visibility conditions.
The system is completed with Jeep Wrangler 4xe overhead mounting brackets built from heavy-duty steel and finished in a black powder coat. Designed specifically for the 4xe’s factory mounting locations and hybrid-specific architecture, these brackets provide a secure mounting solution engineered to withstand the demands of off-road use.
FEATURES
- Dual Power Modes:
- Amber LED Dust Light: Highly visible marker for low-visibility conditions
- High-Power Mode: Intense forward-facing illumination for nighttime trail use
- Titan Core:
- Patented Pass-Through Front Cooling: Superior thermal management
- 3-Source LED Optics: Delivers comprehensive mid- and long-range lighting coverage
- Linkable and Curvable: Patented Infinity Ring® system offers expandable widths and the option to curve or straighten your setup
- Gravity Reflective Diode Technology: Ensures unmatched beam precision and efficiency, providing brighter and more focused light
- MoistureBlock® Technology: Integrated weather-sealed plug protects against water intrusion
WHAT’S INCLUDED

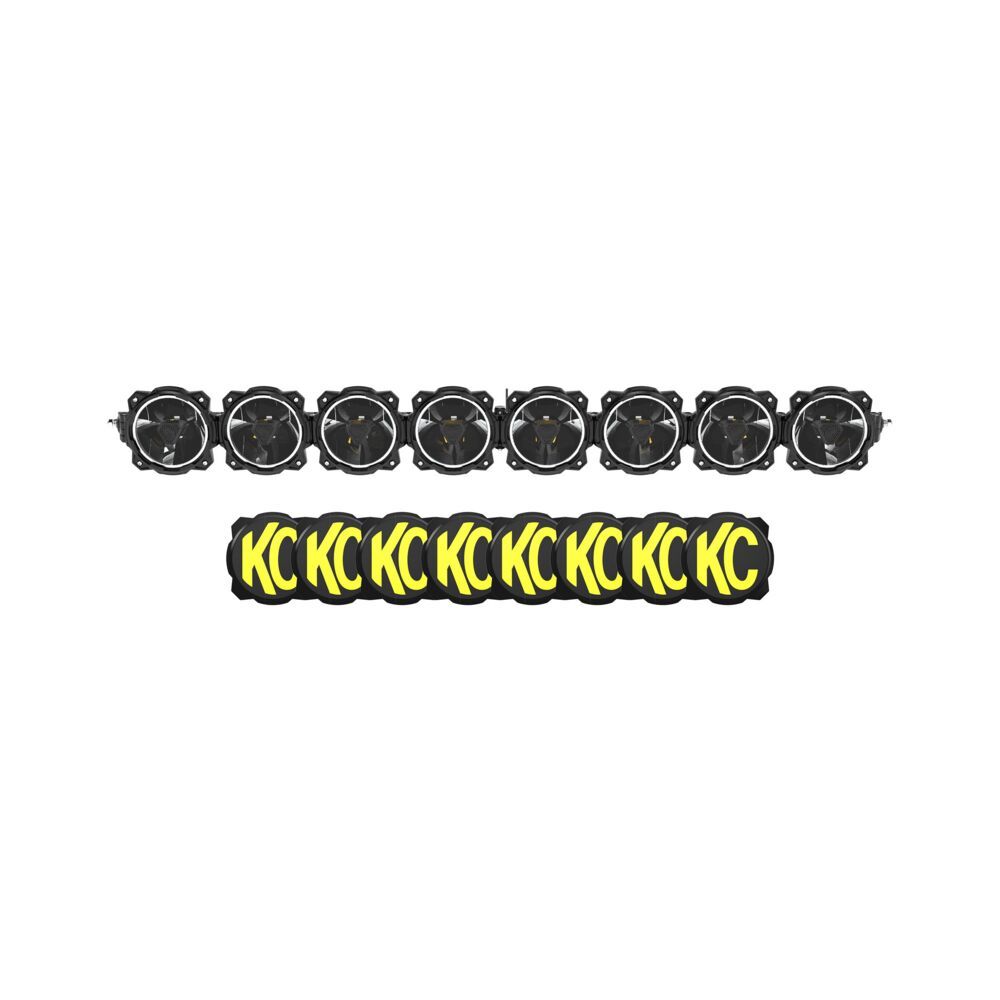

- (1) Gravity® Titan® 50"" LED Light Bar - 8-Light Combo Beam (SKU 91418)
- (8) Gravity 6"" Light Covers - Black with Yellow KC Logo
- (1) Complete Wiring Kit with 3-Position Switch
- (1) Cover Removal Tool

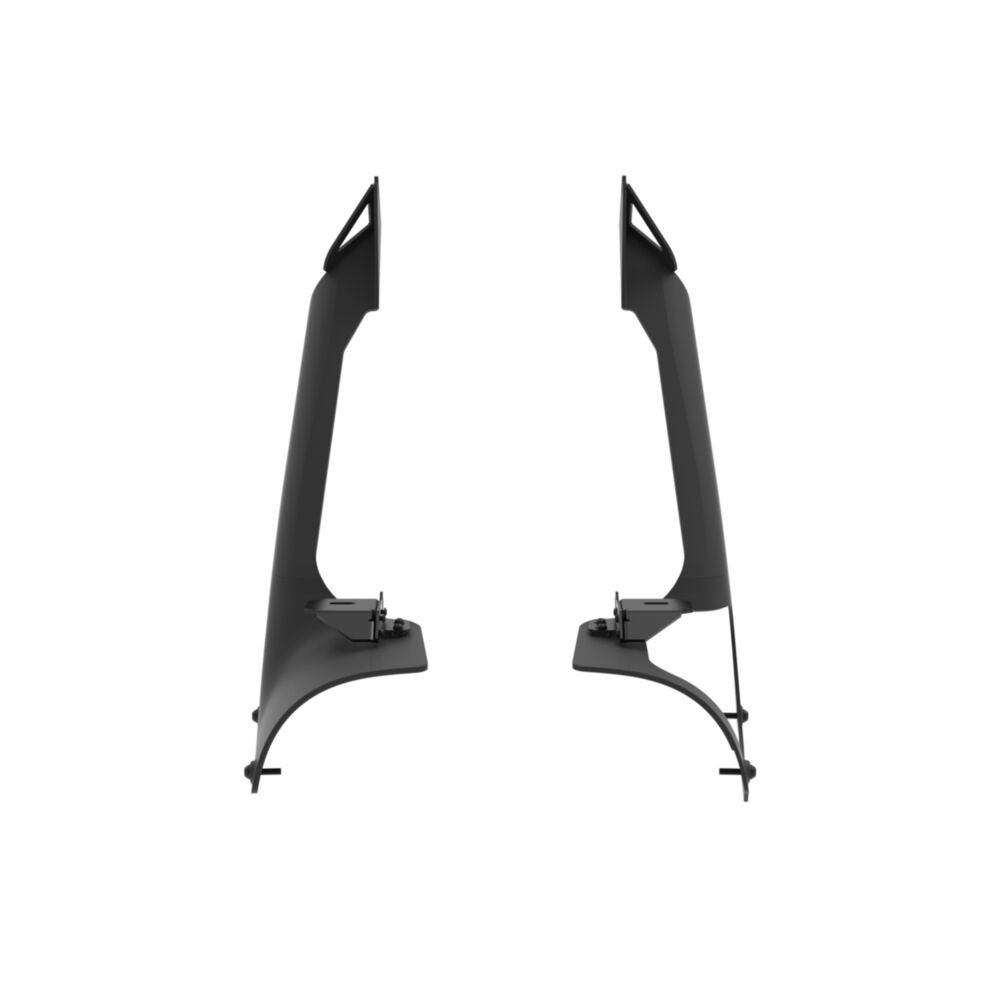

- (1) Pair of Jeep Wrangler 4xe overhead mounting brackets (SKU 7331)
Fitment & Installation Notes
- Vehicle Fitment:
- Jeep Wrangler 4xe (2021-2025)
- For Jeep 392 and Mojave, see SKU AK-91426
- ForJeep JL/JT, see SKU AK-91424
- Betala säkert med kort
- Kontakta oss om du har frågor!
Beskrivning
Art.nr: AK-91430
| Package Options | Includes Covers, Includes Mounts/Brackets, Includes Wiring, Includes Switch |
|---|---|
| Light Technology | LED |
| Mount Location | Overhead |
| Beam Distance | 1,010 m |
| Beam Pattern | Combo What's this? |
| Color | Black |
| Included Components | 1 x 50" Gravity® Titan® LED Light Bar - 8-Light, 8 x Gravity 6" Light Cover - Black with Yellow KC Logo, 1 x Complete Plug-N-Play Wiring Harness with 3-Position Switch, Hardware, 2 x overhead 50" Light Bar Mounting Bracket, Installation Hardware |
| LED Color | Amber / White |
| Lens Color | Clear |
| Light Temp | 5000 K |
| Candela Per Light | 144,250cd (Spot) / 77,500cd (Wide 40) |
| Total Candela | 1,020,500 cd |
| Wattage Per Light | 11.2W (Amber) / 39.48W (White) |
| Total Wattage | 89.6W (Amber) /315.84W (White) |
| Amp Draw Per Light | 0.93 a (Amber) / 3.29 a (White) |
| Total Amp Draw | 7.47 a (Amber) / 26.32 a (White) |
| Voltage | 9V-36V |
| Lumens Per Light | 2,972 lm |
| Total Lumens | 23,776 lm |
| Lux Per Light | 1,443lx (Spot) / 775lx (Wide 40) |
| Total Lux | 10,205 lx |
| UPC | 084709200084 |
| IP Rating | IP68 |
- VarumärkeKC HiLites
