Falken Fabrication Bolt-on Shackle Relocation - Jeep XJ
Falken's Bolt-on Schackle Relocation allows you to maintain the comfort of the rear suspension and extends the life of the springs.
When installing a higher rear suspension, the shackle angle is often disturbed, which is supposed to be about 45 degrees. Instead, it often ends up at a straighter angle, which means that the leaf spring alone takes most of the blows. The result is a harsh ride and that the springs are dulled over time as they are designed to be helped by the swing of the shackle.
When installing a higher rear suspension, the shackle angle is often disturbed, which is supposed to be about 45 degrees. Instead, it often ends up at a straighter angle, which means that the leaf spring alone takes most of the blows. The result is a harsh ride and that the springs are dulled over time as they are designed to be helped by the swing of the shackle.
- Secure payment by card
- E-mail us, we reply swiftly!
- These rows can be edited \*
\* Edit these rows under Content > Product page
Description
Article no.: XJ005

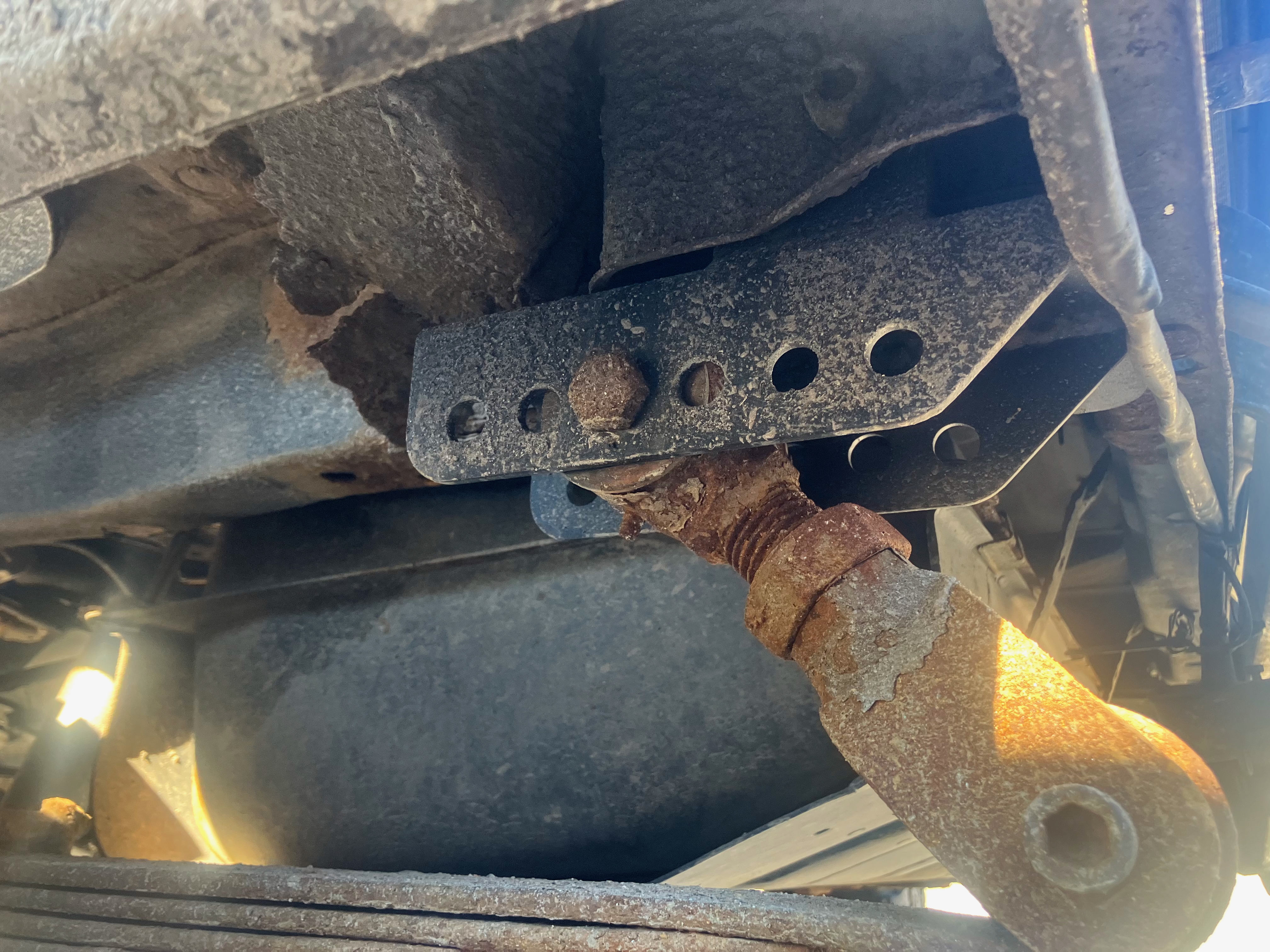

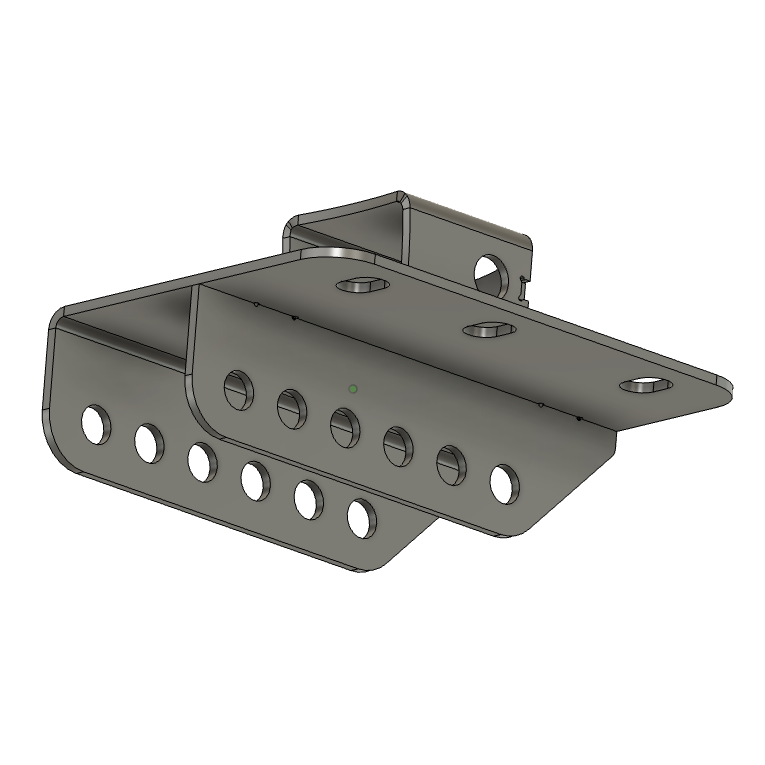

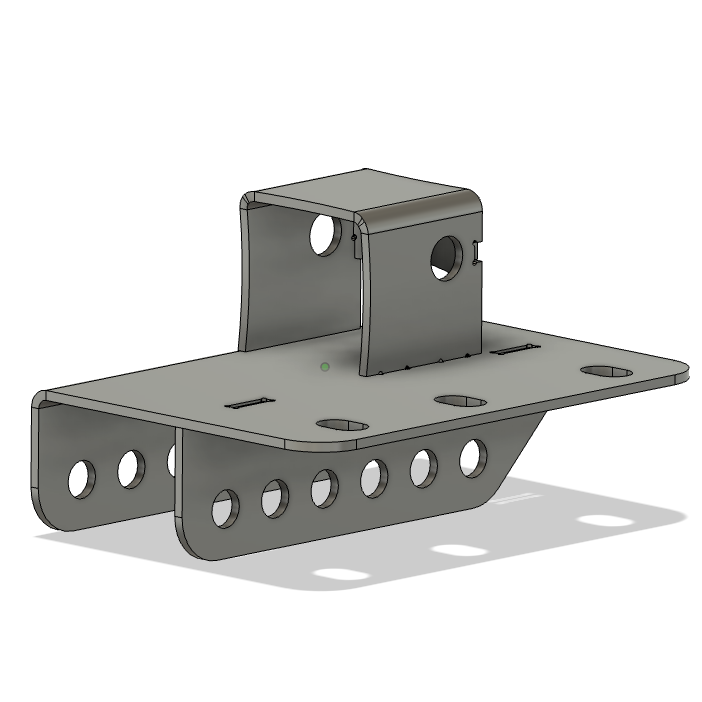

Falken's Bolt-on Schackle Relocation is easily installed in existing mounting points, without cutting into the original brackets. Once in place, just try out which of the six holes fits best.
- Made in Sweden
- Powder coated with primer and two layers of durable textured paint
- Gives about 1.5" lift
- Includes two M14x120mm bolts
- The relocation mounts to the holes in the frame usually reserved for gas tank skid plates and hitch. If your jeep doesn't have the corresponding nut-strip in the frame you will also need XJ003 Frame Rail Nut Strip.
